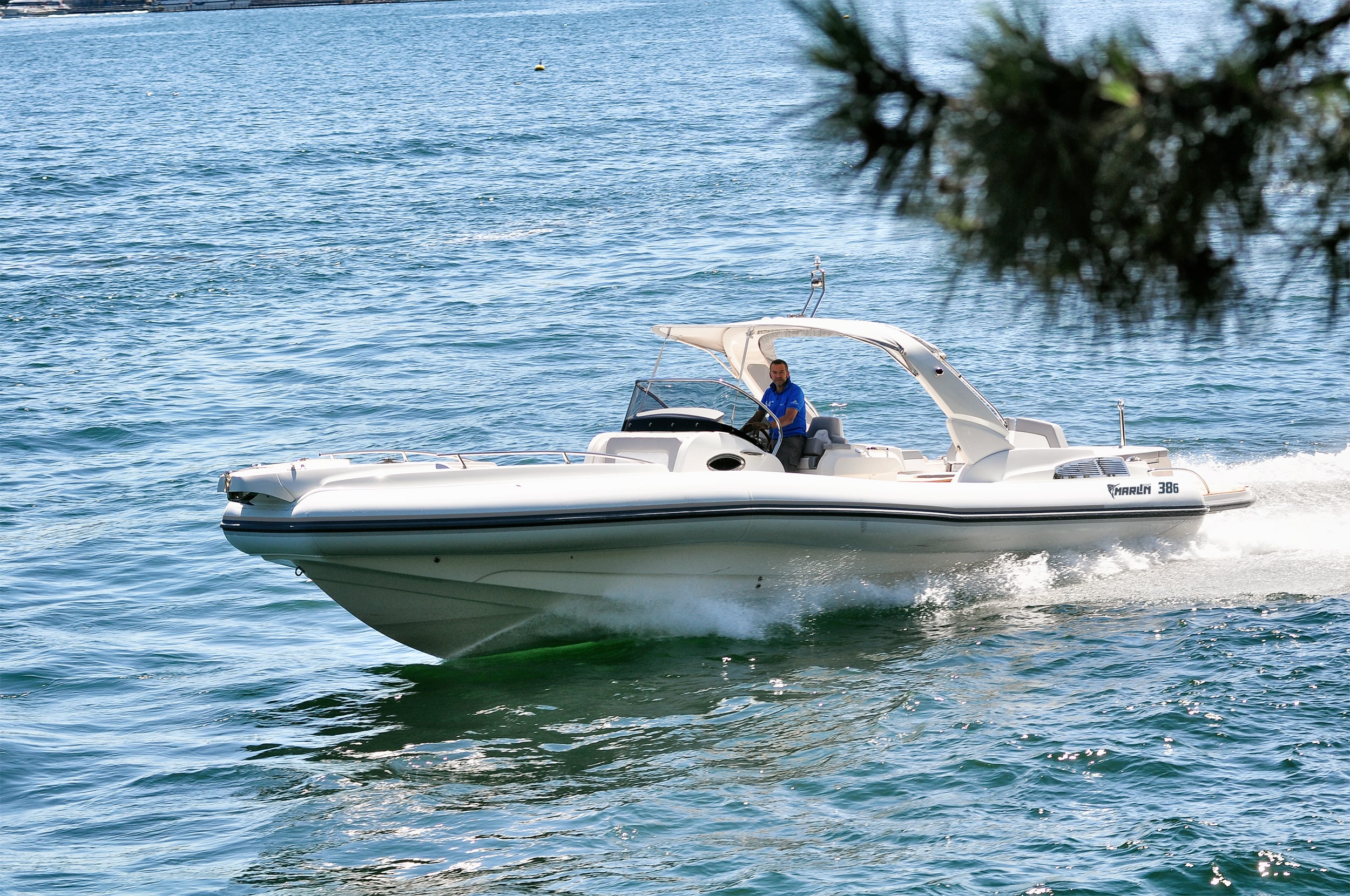

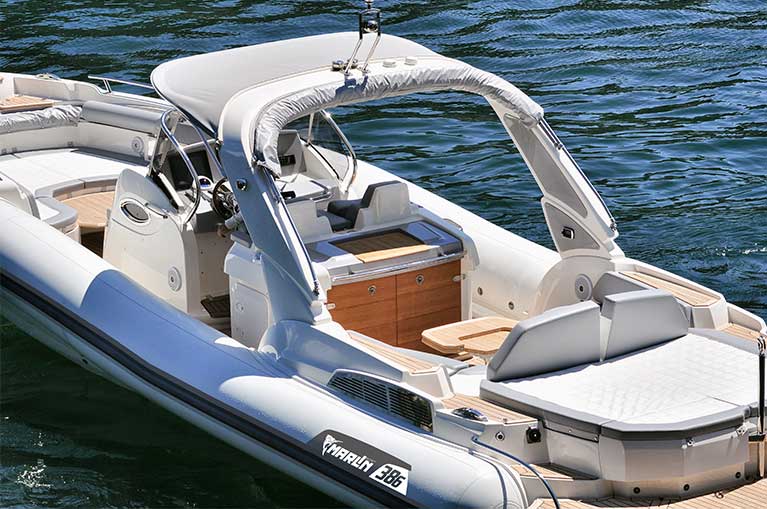

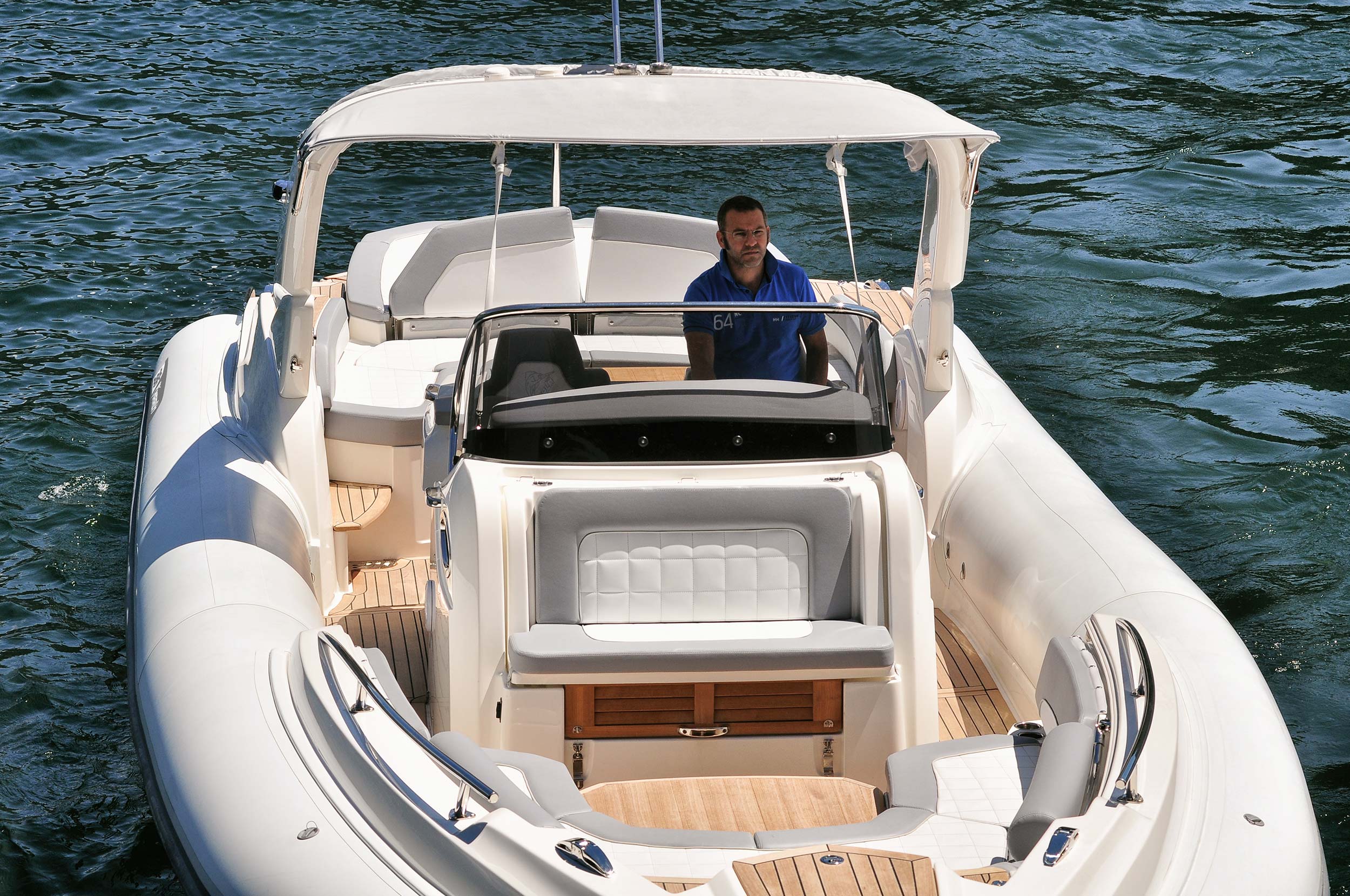

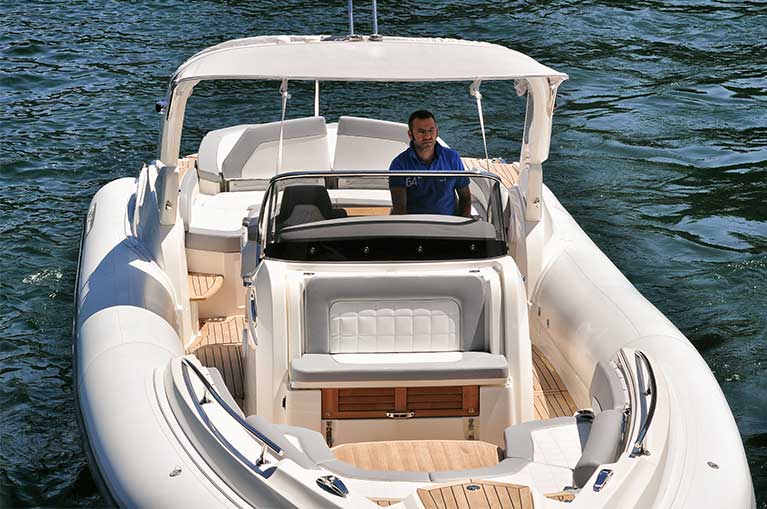

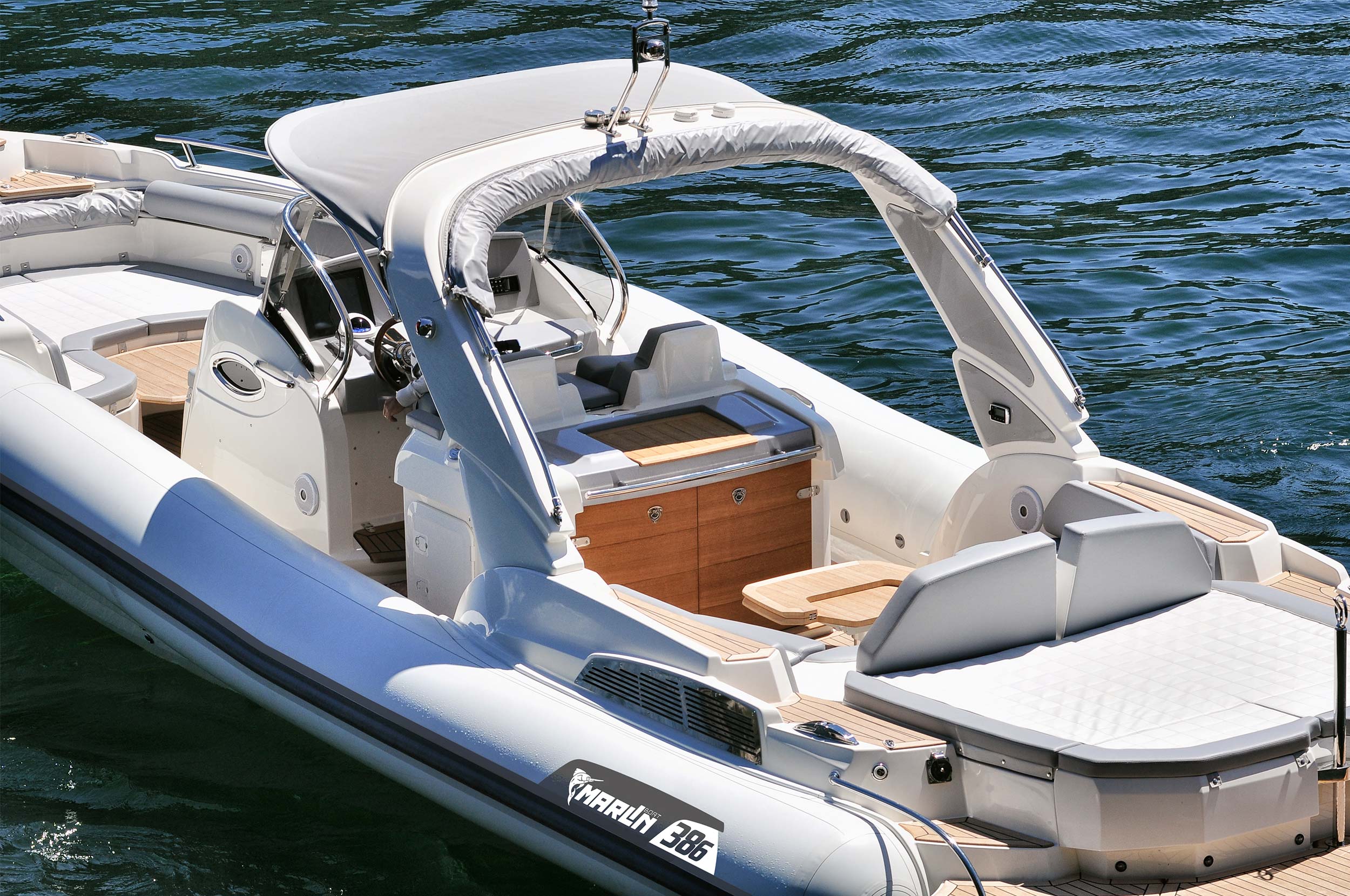

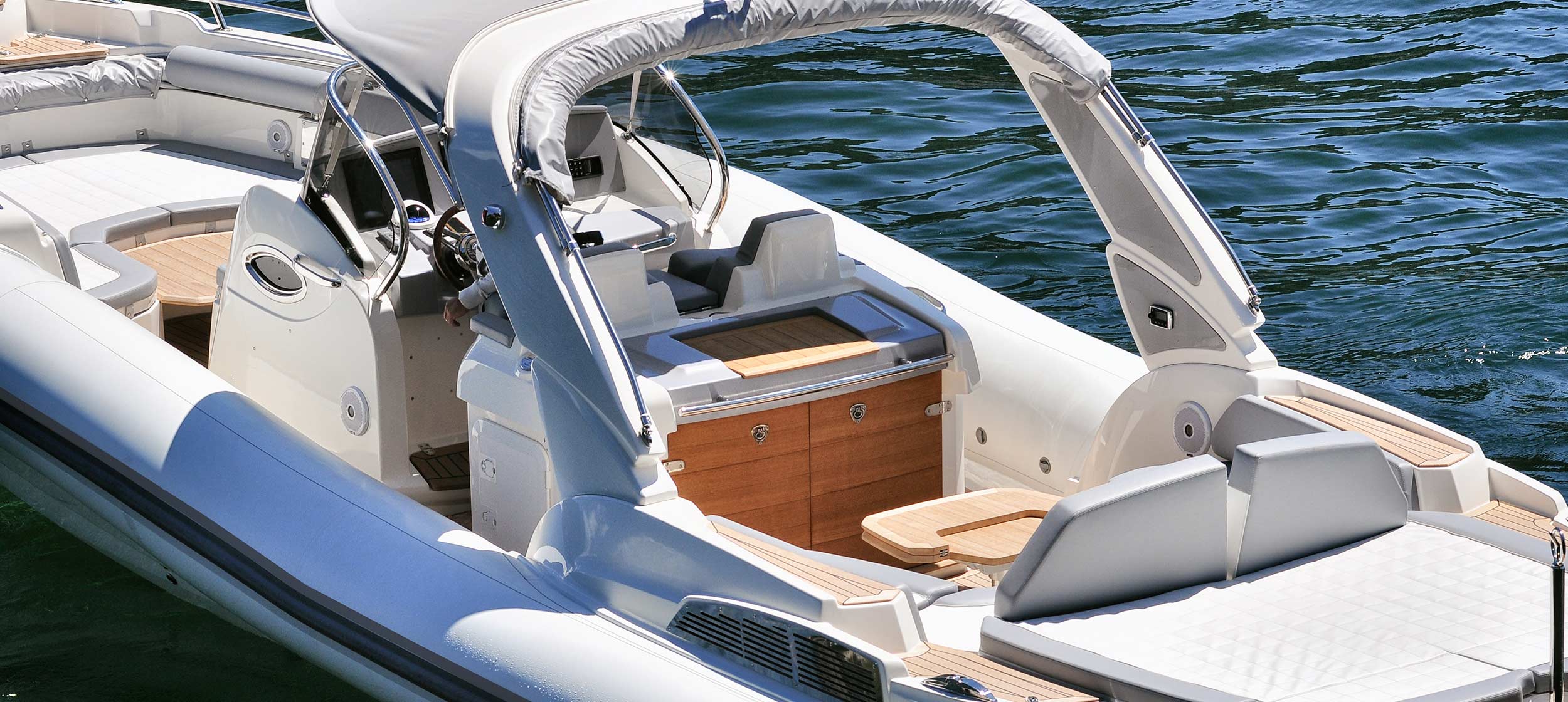

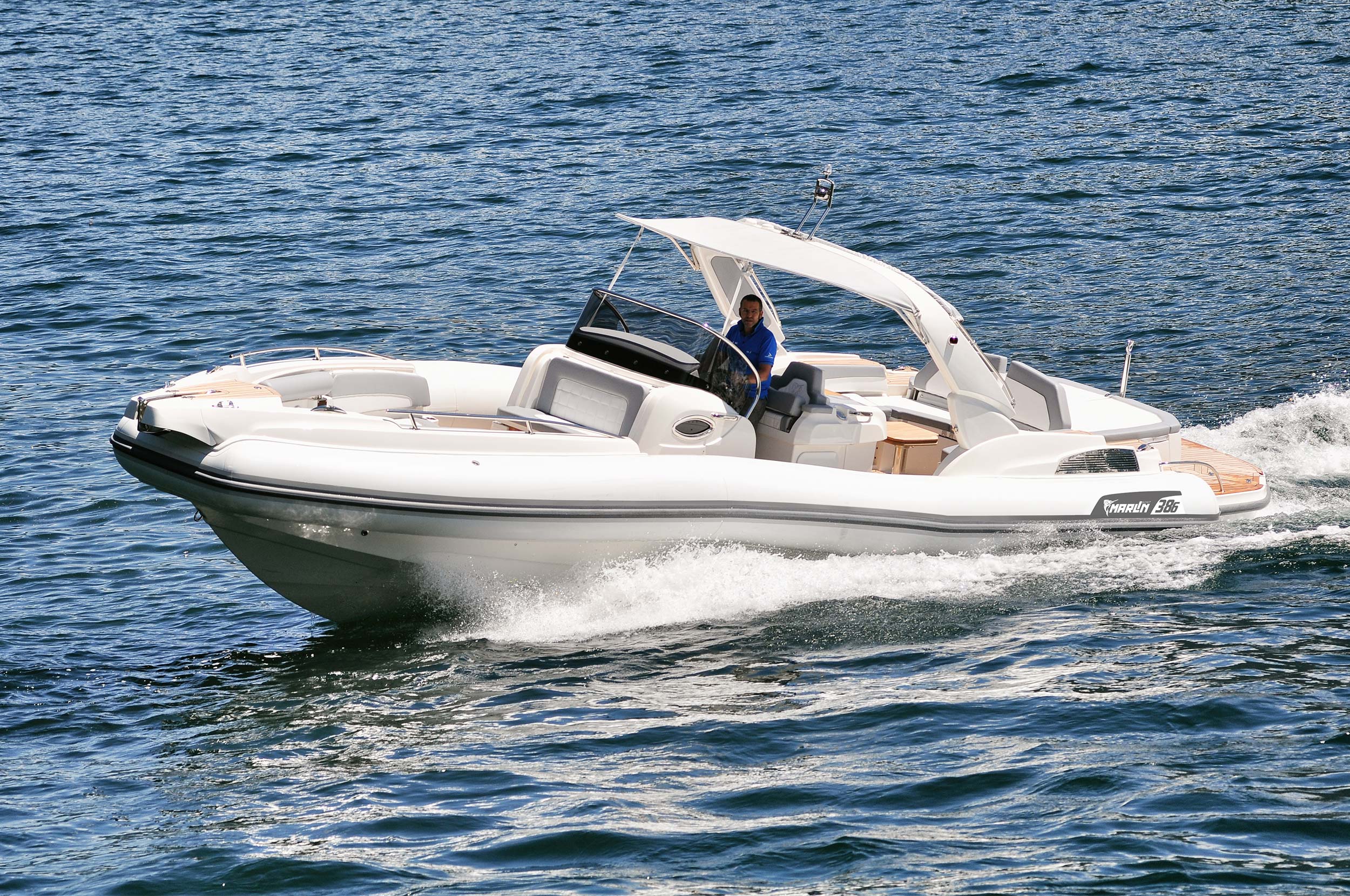

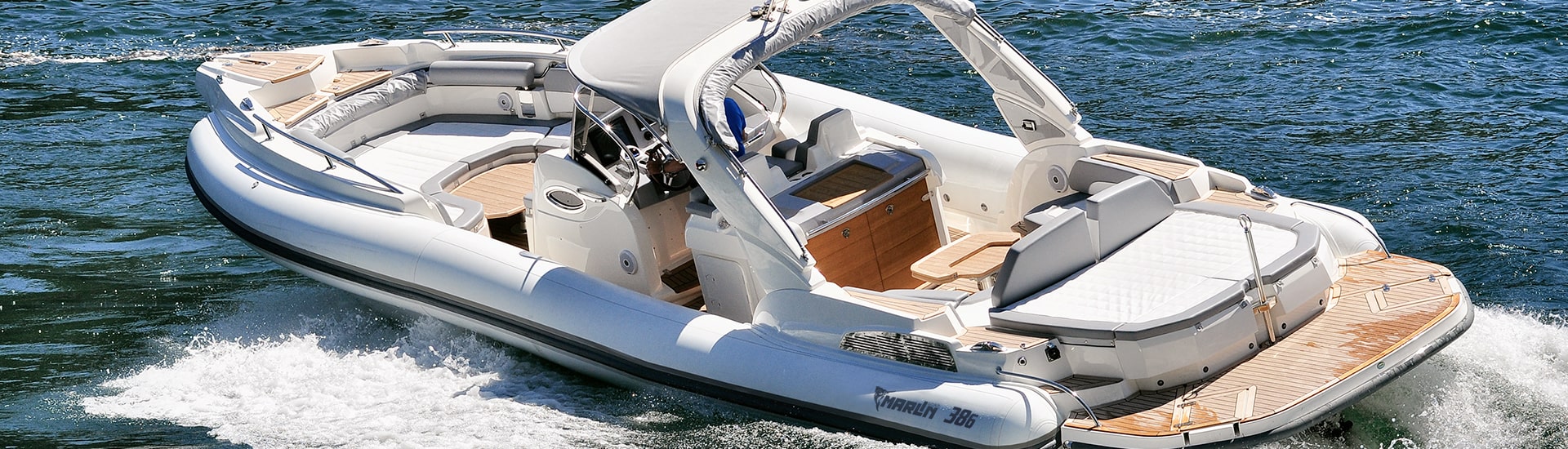

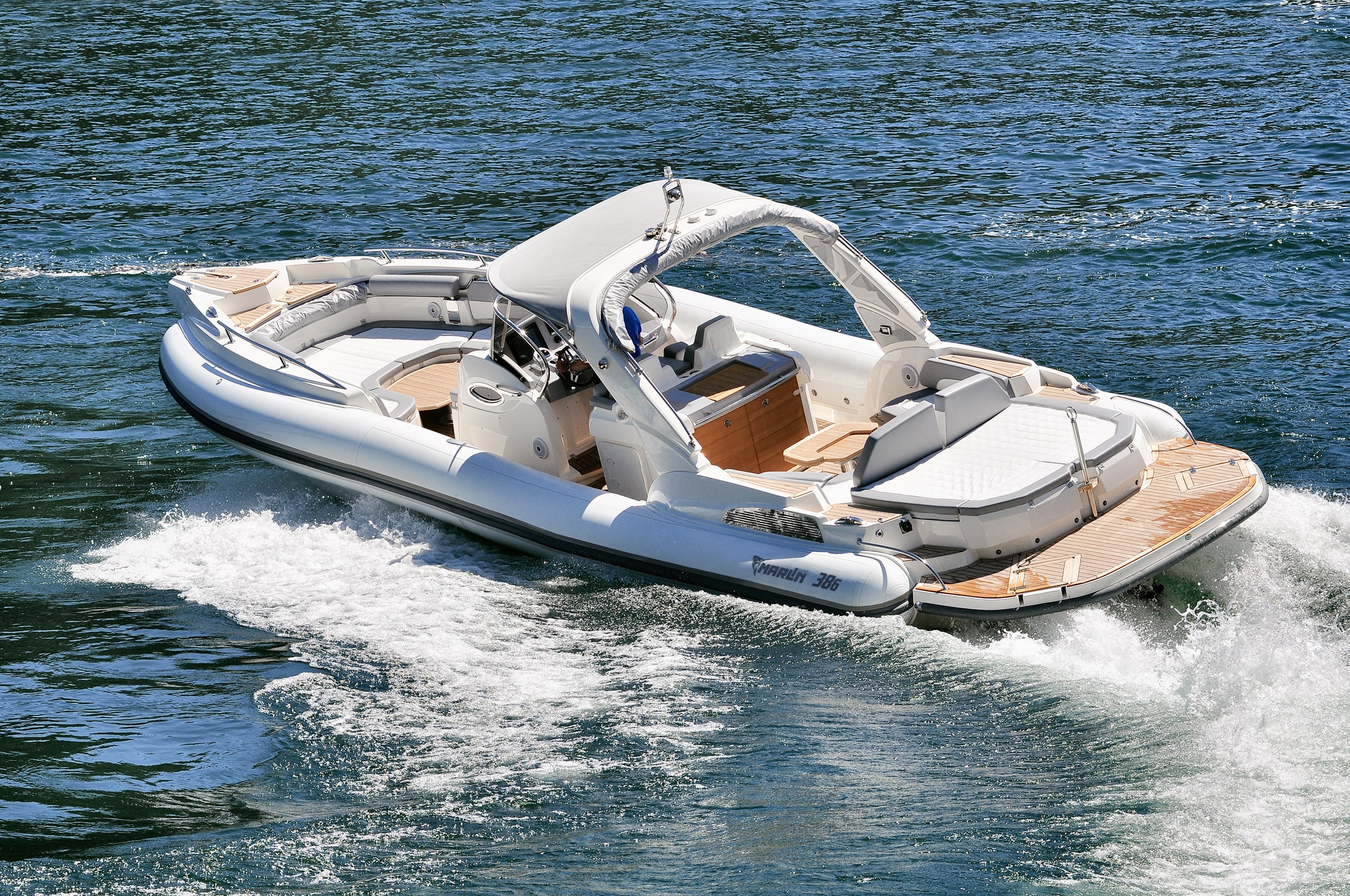

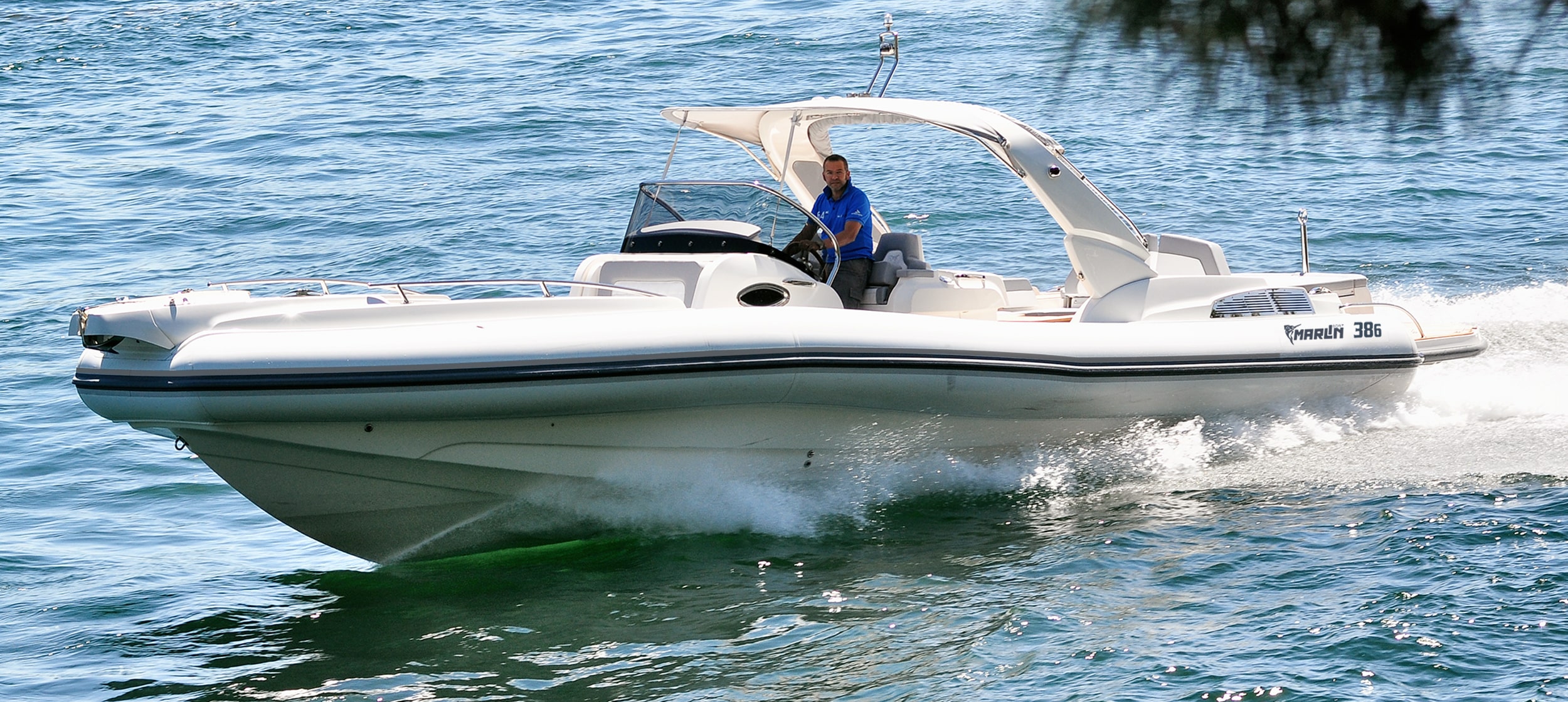

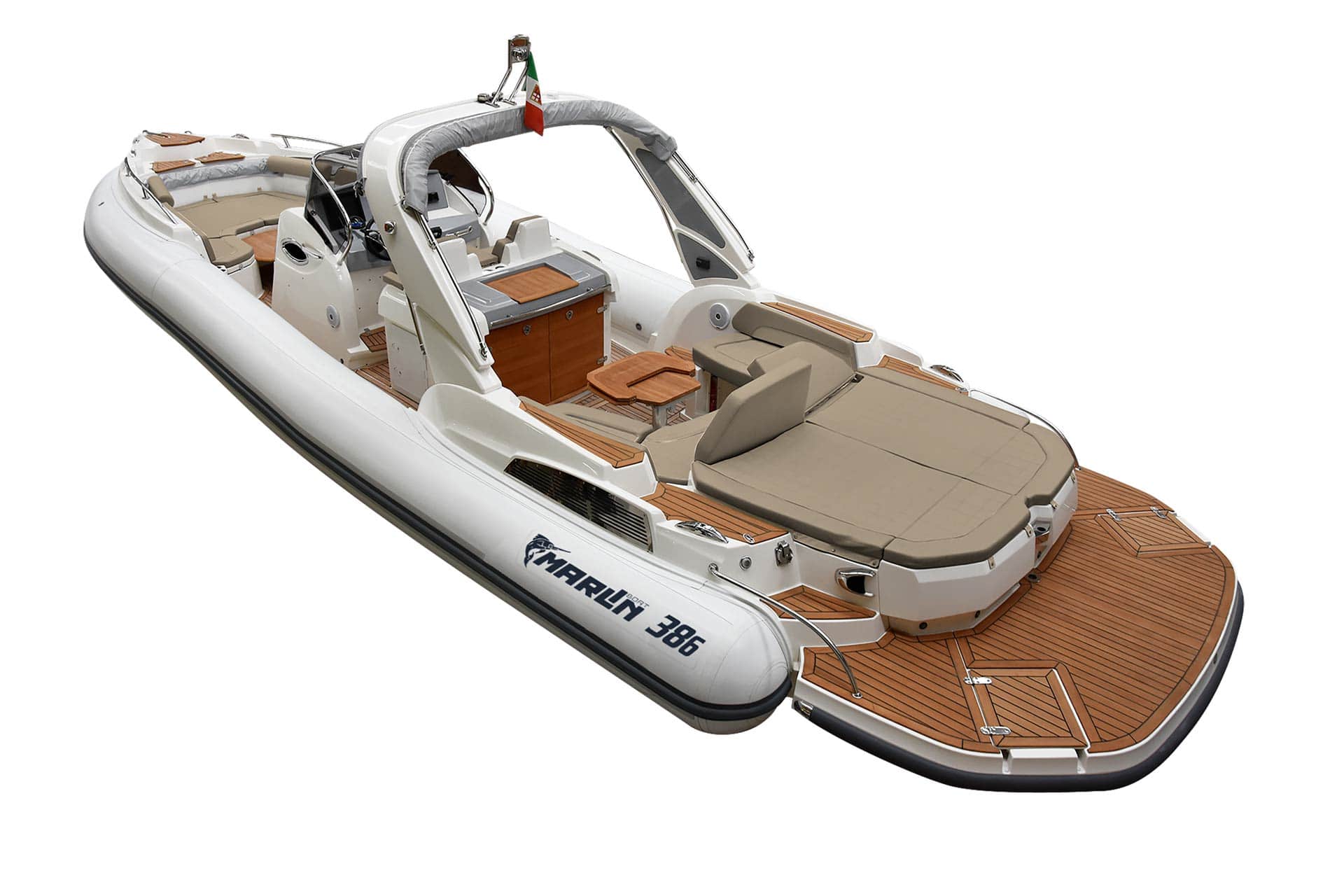

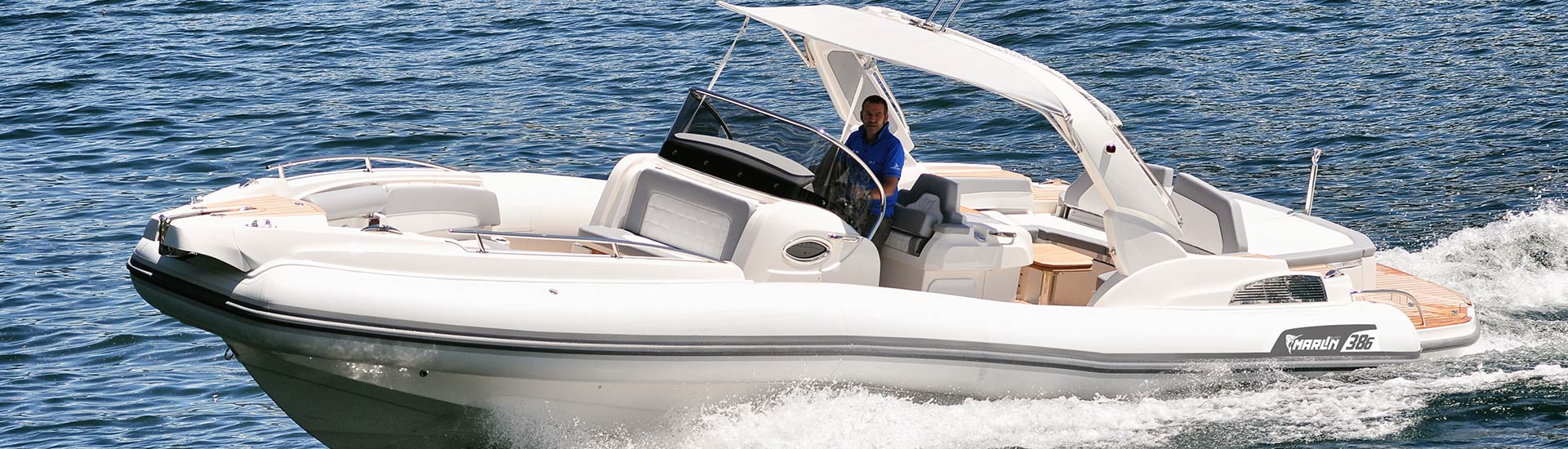

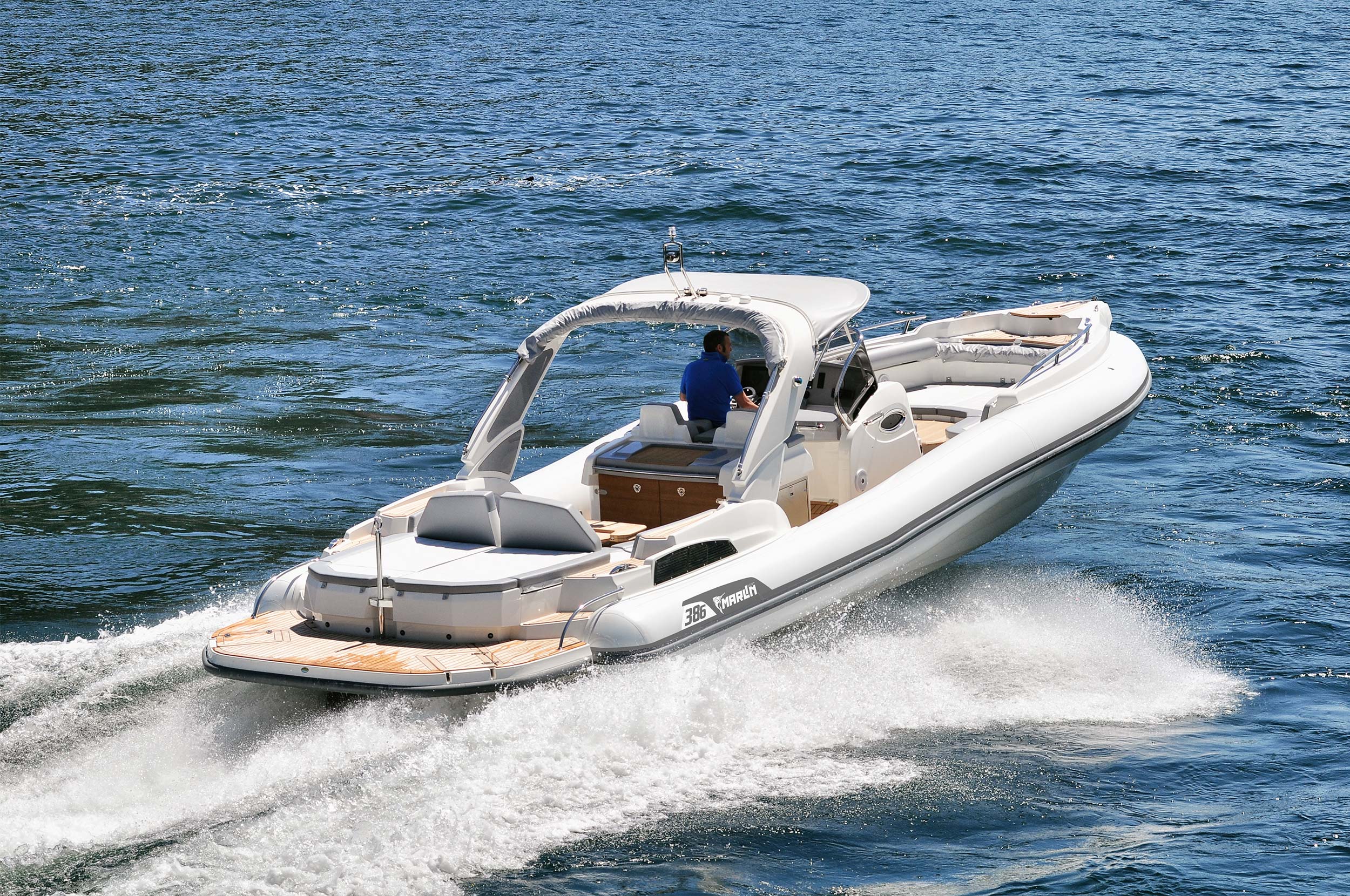

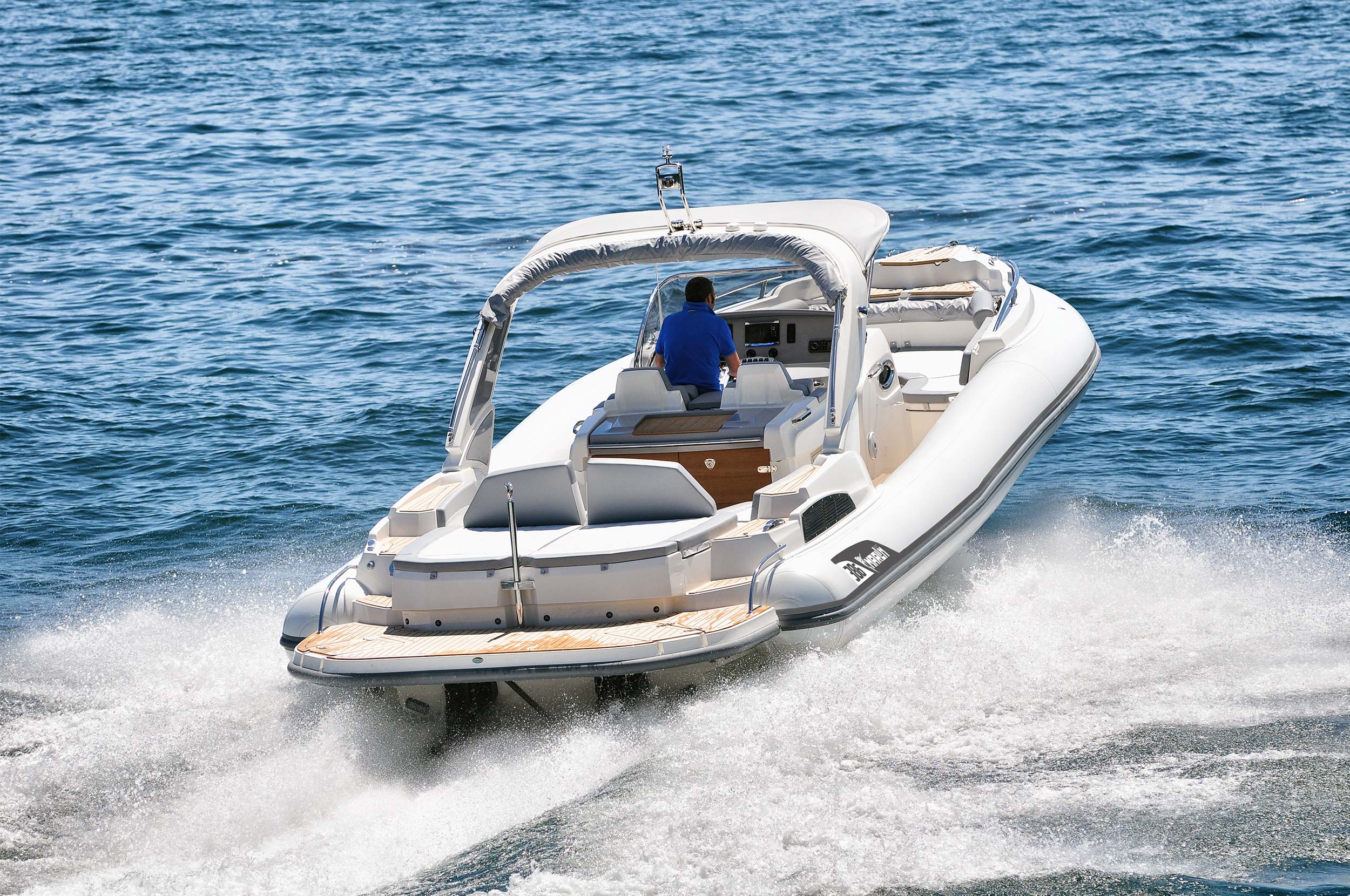

Model Outboard 386 | Marlin Boat

Design category

Overall lenght

cm 1175

Homologation lenght

cm 999

Internal lenght

cm 920

Overall width

cm 366

Internal width

cm 242

Tubular diameter

cm 62

Weight without motors

kg 3800*

Capacity of people

nr. 18

Maximum power

CV 860

Compartments

nr. 6

Fuel tank capacity

lt. 720

*approximate weights with drive included

Water tank capacity

lt. 170

Tube material

1600 gr/m²

Bottom

G.R.P. Triple hull moulding
Plans and patents Marlin Boat

STANDARD
360° navigation Led light
Anchor windlass with GRP bow mould, rope, chain and stainless steel anchor
Cooking seat with drawer fridge 49 Lt and stainless steel sink
Complete cushions set
Cushion set for seat and bow locker
Deck and swim platforms courtesy blue led lights
Electric inflator pump
GRP bow
Haulage stainless steel eyebolts
Hydraulic steering single
Joystik piloting for sterndrives JPS-AXIUS
Lifting stops with stainless steel shackles
Mooring and trasport stainless steel eyebolts
Synthetic teak floor
Stainless steel drawer fridge 65 It
Stainless steel mooring bollards
Steering console with windscreen, stainless steel handrail, instrument panel, steering, two seats in the front
Stern platforms with stainless steel ladder
Teak table with removable pedestal
Toilet equipment: electrical wc, portholes, teak cabinet, sink and waste water tank 40 Lt
Tubes reparation kit
Stainless steel fuel tank
Water tank with pump and shower
Wiring with electric control panel, horn, 360° light, bilge pump

EXTRA

Water skiing towing pole
Bow thruster
Stern underwater blue led lights
Stainless steel and GRP hard top with led light and stern bimini
Inflatable gangway Airgangway 200x50
Fyberglass rollbar with led lights and extensible bimini
